Here you will find a variety of exciting tutorials and downloads that will help you assemble different 3X3 components. Do you have any questions? Feel free to contact us, we are happy to help you.

Assembly Tutorial

  • Mounting the brake disk

    You will need a torque wrench (4-6Nm) and the accessories supplied by us to install the brake disk.

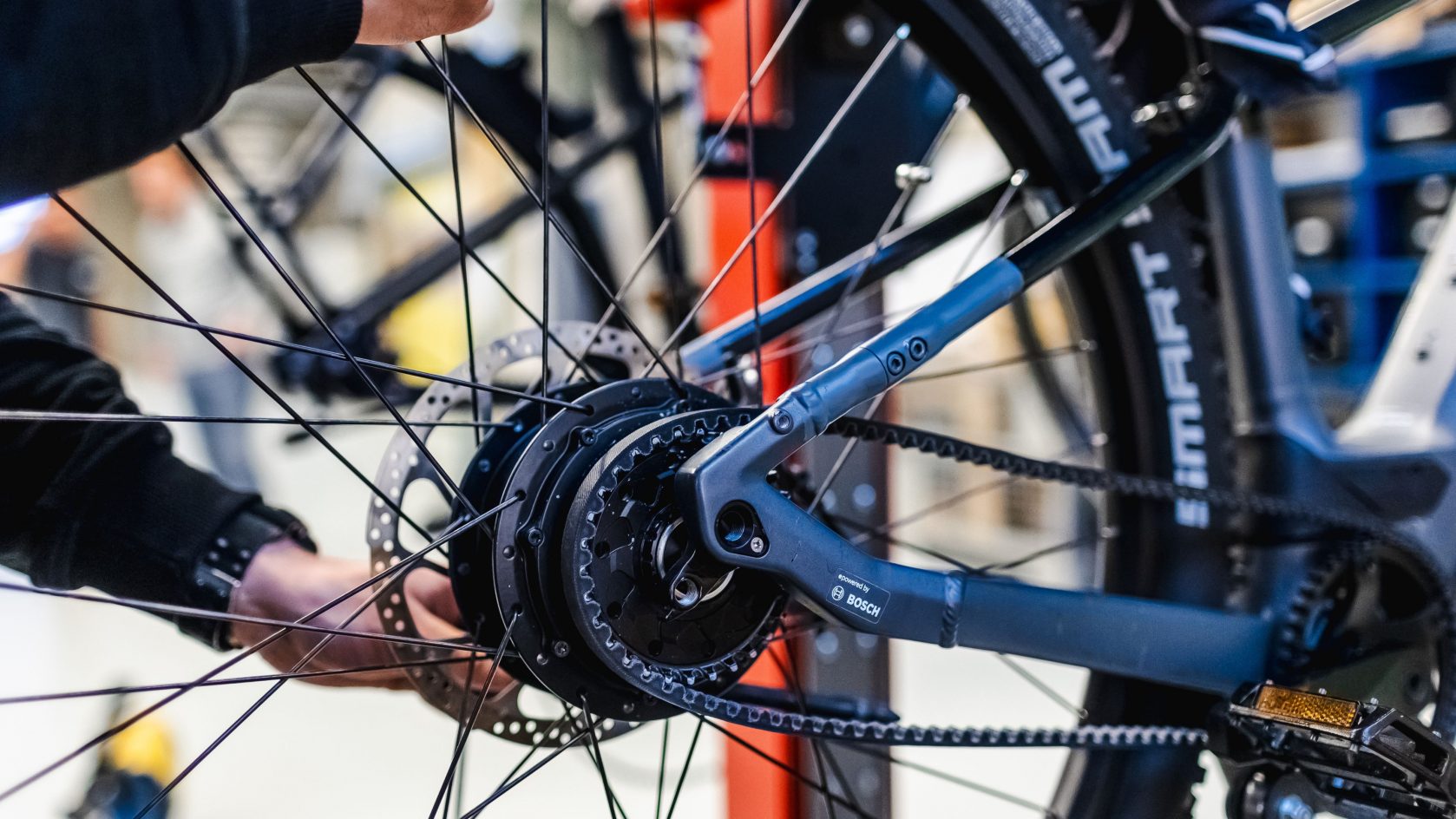

  • Mounting the switching control unit

    You will need a torque spanner (4-6 Nm) to fit the gearshift control unit.

  • Mounting the axle plate

    You will need a torque spanner (4-6Nm) & the appropriate axle plate to fit the axle plate.

  • Fitting the pulley / sprocket

    You will need a torque spanner (40Nm), a BSA bottom bracket tool & a chain whip or belt tension spanner to fit the chains or sprockets.

  • Mounting the wheel

    To install the wheel, you will need a torque spanner and the torque specified by the bicycle manufacturer for the axle.

  • Mounting the rotary shift

    You will need a TX10 screwdriver and two 1.2 mm thick shift cables to fit the twist shifter.

  • Installation and adjustment of the cable box

    To fit the cable box, you will need a side cutter, a 2 mm hexagon socket and a cable tensioner.

DOWNLOADS

  • Product data sheet Shifters

    pdf

  • Product data sheet NINE

    pdf

Downloads and OEM

This area for OEM is protected and requires a password to access the downloads. If you do not have a password, please contact us here and we will check if we can provide you with one.

Request password
